VidiView Accessories

Accessories and interfaces for seamless integration

VidiView is often installed as part of a highly integrated clinical environment, connecting with imaging modalities, camera systems, foot pedals, lighting and other equipment.

We aim to provide smart, regulatory-compliant solutions that make these integrations as seamless as possible. This may include software-based integration using standards and protocols such as KNX and VISCA, as well as proprietary protocols for controlling video-related equipment from a wide range of manufacturers.

Where needed, we also develop dedicated interfaces and cables to simplify integration and create a more streamlined clinical workflow.

Ingressbild

Trigger Interface

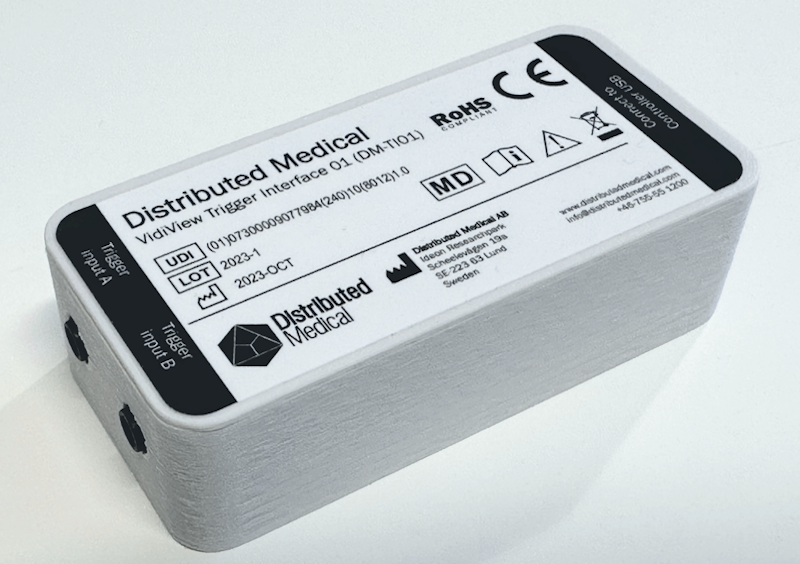

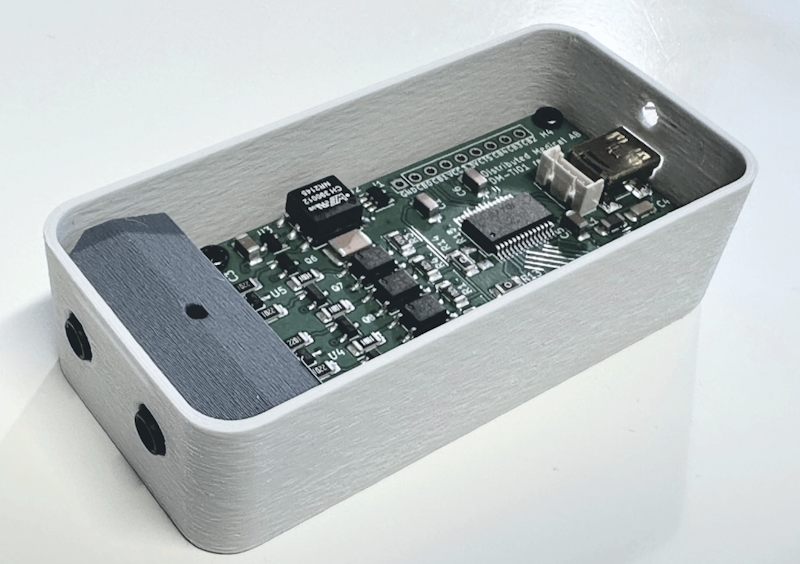

The Distributed Medical Trigger Interface 01 (DM-TI01) is the first CE-MDR compliant inter­connection solution for imaging modalities and recording units such as the VidiView Controller. It can be used and integrated in any software solution and comes with a comprehensive SDK for easy integration into your own design!

Host interface Mini USB (2.0)
Trigger interface 2x 3.5mm. female 3-segment (tip, ring and sleeve) connectors
Supported cable length (on host side) Up to 5 m.
Supported cable length (on equipment side) Up to 30 m.
Cabels included in delivery 2 m. Mini-USB to USB-A cable
Trigger interface capability Each trigger input can detect a signal alteration on both tip and ring, making a total of 4 trigger channels available in 1 interface. Multiple interfaces can be connected to a single host.
Isolation design The unit is optically isolated and total galvanic isolation is guaranteed. Built-in surge protection of min. 5kV
Software compatibility

The unit emulates a RS232-port and requires no separate driver to work on
most host systems.

An extensive software development support-package is available for quick
implementation in new software designs.
